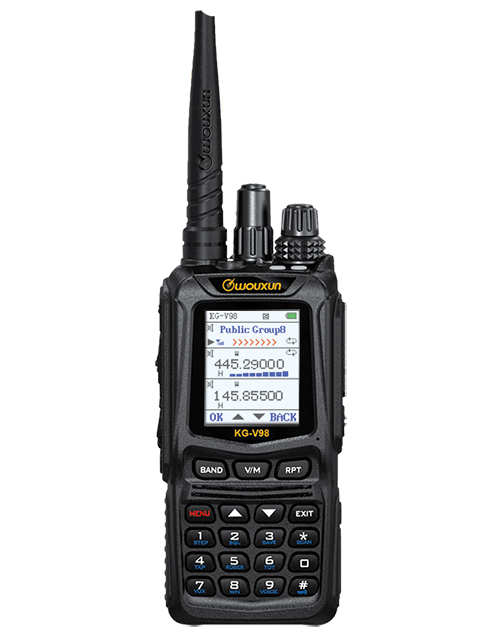

Cross Band Repeater , 4G LTE Network And Analogue , Simcard Radio KG-V98



	Cross Band Repeater , 4G LTE Network And Analogue , Simcard Radio KG-V98

CLICK HERE CLOSE LIST

Supper Long Talk Range
Thanks to PoC (Push-to-Talk Over Cellular) And Cross Band Repeater Technology ,
The KG-V98 Can Support Supper Long Talk Range More Than 100 KM.

Three Modes
There Are Three Mode in KG-V98 , VHF & UHF & PoC (Push-to-Talk Over Cellular)

Cross Band Repeater
KG-V98 Repeater Support VHF ↔ UHF,VHF↔POC, UHF↔POC

Telephone Call
KG-V98 Support Voice Telephone Call

High Power 5W
The Highest Power For KG-V98 is 5W.


MAIN FUNCTIONS

Customizable Phone Call Function
Compatible With 4G / 3G / 2G Public Network
Network to Analogue , Analogue to Network , Analogue to Analogue
Duplex Work at A / B / C Areas , One Area TX , Another Area RX
Dual Receive , Simultaneous Reception Among A / B / C Areas , Same Band or
Cross Band Available
Large Colorful Screen
Tri-Bands Display on The Large Screen Independently
Frequency Offset And Direction Programmable in Repeater Mode UHF / VHF
or VHF / UHF Cross-Band Repeater
Bright Flashlight Illumination
QT / DQT Encoding and Decoding
QT / DQT Scan
Support RealPTT Public Network Platform

VOX and SOS Function
Multi Definition For Sidekeys
Incoming Message Display Caller ID
DTMF Encoding And Decoding
All Calls , Group Calls And Selective Calls
Priority Scan Function
Remote Alarm
Wide / Narrow Bandwidth Selection (12.5 / 25 KHz)
Chinese or English Voice Guide
Reverse Frequency
Stopwatch , Compander
Setting For Backlight
Single Tone Pulse Frequency , 1000 / 1450 / 1750 / 2100 KHz


TECHNICAL SPECIFICATION

General
Audio Power	≤500 mW
Operating Temperature	-20 ℃～+40 ℃
Voltage	7.4 VDC
Weight	298 G
Dimension	28 x 50 x 132 MM

Public Network
Work Frequency	Compatible With 4G / 3G / 2G Network
Max TX Power	23~25dBm @ AII Up Bits
RX Sensitivity	-106 dBm

Analogue
Frequency Range	Suitable For Different Countries or Areas 136-174 & 400-470MHz (RX/TX) 136-174 & 400-480MHz (RX/TX) 144-148 & 430-440MHz (RX/TX) 76-108MHz (FM , RX , Setp 100K)
Setp	5 / 6.25 / 12.5 / 25 / 50 / 100 KHz
Memory Channels	999
Mode	F2D/F3E
Antenna Impedance	50Ω

Analogue Transmitter
	Wide	Narrow
Adjacent Channel Selectivity	≤ 70dB	≤ 60dB
Inter-Modulation	≤ 65dB	≤ 65dB
Spurious Response	≤ 70dB	≤ 70dB
Audio Response	+1~-3dB(0.3~3KHz)	+1~-3dB(0.3~3KHz)
Squelch Sensitivity	≥45dB	≥40dB
Audio Distortion	≤5%
Output Power	UHF 4W , VHF 5W

Analogue Receiver
	Wide	Narrow
Modulation	16K F3E	11K F3E
Effective Radiation Power	≥70dB	≥60dB
Spurious Response	≥60dB	≥60dB
Audio Response	+1~-3dB(0.3~3KHz)	+1~-3dB(0.3~3KHz)
Max Offset	±5KHZ	±2.5KHZ
Frequency Stability	±2.5PPM
Audio Distortion	≤5%
Sensitivity	UHF : 0.25uV(12dB SINAD) VHF : 0.25uV(12dB SINAD)

STANDARD ACCESSORY

Send Accessory Inquiry

Please Click The Icon to Select The Items You Want, And Send The Inquiry to WOUXUN For Offers

BLO-015	CHA-014	CHA-014	ANO-011

Li-ion Battery Pack , 2500mAh	Desktop Charger	Power Supply Adaptor	Antenna

OTH-005	OTH-002

Hand Strap	Belt Clip

OPTIONAL ACCESSORY

HEO-001	HEO-002	ELO-006	PCO-009

Headset	Air Conduit Earphone	Eliminator	USB Programming Cable

CHA-032	CCO-002	SMO-002	CHA-031

Six-way Charger	Car Charger	Sperker	USB Charging Cable
