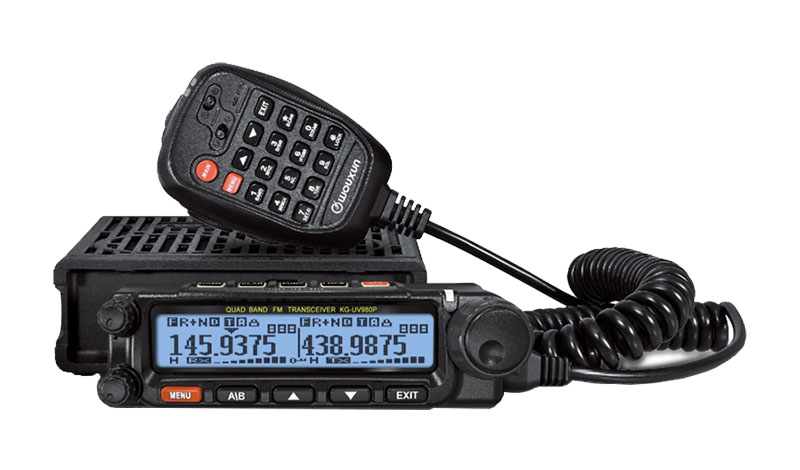

Shortcut Key Front Panel , Quad Bands Transmission , Car Mobile Radio KG-UV980P

Switching Power , 30A

USB Programming Cable

Strong Magnetic Mount



	Shortcut Key Front Panel , Quad Bands Transmission , Car Mobile Radio KG-UV980P

CLICK HERE CLOSE LIST


MAIN FUNCTIONS

Dual Frequency Display, Dual Independant Operation System
Eight Bands for Receiving , Four Bands (Including SW) for Transmitting
Twin Band / Same Band Simultaneous Reception
999 Memory Channels
Front Panel And Radio Body Flexible For Separation
QT/DOT Encoding And Decoding
QT/DOT Scanning
Non-standard CTCSS/DCS Setting Freely
Same Band Repeat on Two Combined Radios
Dual Track And Multi-way Loudspeakers
Hand Microphone DTMF With Loudspeakers
Caller ID Display
DTMF Encoding And Decoding
Multiple Scanning Ways

Group Calls, All Calls And Selective Calls
8 Groups of Scrambler
Priority Channel Scanning
APO Power Management
Wide / Narrow Bandwidth Selectable
Chinese or English Voice Guide
Automatic Temperature Detection
Stun / Kill Function
Single Audio Pulse Frequency
Multiple Back Light Color Selectable
Scan Channel Adding / Deleting
Grouping Channel Scanning
Multiple Setting for Cooling Fan
Superheterodyne Receiver Type


TECHNICAL SPECIFICATION

Intergration
Frequency Range	Suitable For Different Countries or Areas TX , FM 26-29.995MHz / 50-53.995MHz 136-174.995MHz / 400-479.995MHz RX , FM 26-29.995MHz / 50-54.995MHz / 65-108MHz 108-180.995MHz / 320-349.995MHz 400-479.995MHz / 700-987.995MHz RX , AM 108MHz-136MHz
Step	5KHz/6.25KHz/10KHz/12.5KHz 25KHz/50KHz/100KHz
Channel Number	999
Work Mode	F2D/F3E
Operating Temperature	-20℃～+60℃
Voltage	13.8VDC±15%
Antenna Impedance	50Ω
Weight	1438 g
Size	140 x 44 x 207 MM

Receiver
	Wide	Narrow
Adjacent Channel Selectivity	≤70dB	≤60dB
Inter Modulation	≤65dB	≤60dB
Spurious Response	≤70dB	≤70dB
Audio Response	+1~-3dB(0.3~3KHz)	+1~-3dB(0.3~3KHz)
Signal to Noise Ratio	≥45dB	≥40dB
Audio Distortion	≤5%
Audio Power	transceiver≤3w , hand microphone≤1w
Sensitivity	UHF/VHF：0.25µV（12dB SINAD）

Transmitter
	Wide	Narrow
Adjacent Channel Power	≥70dB	≥60dB
Type of Modulation	16K F3E	11K F3E
Spurious	≥60dB	≥60dB
Signal to Noise Ratio	≥40dB	≥36dB
Audio Response	+1~-3dB(0.3~3KHz)	+1~-3dB(0.3~3KHz)
Output Power	VHF(5W/10W/25W/50W) UHF(5W/10W/25W/40W)

STANDARD ACCESSORY

Send Accessory Inquiry

Please Click The Icon to Select The Items You Want, And Send The Inquiry to WOUXUN For Offers

MMO-003	SAO-001	SAO-002	MBO-001

Hand Microphone	Inclined Switchboard Panel	Flat Switchboard Panel	Mobile Mounting Bracket

RBO-001	PWO-002	SCO-002	SSO-001

Remote Front Panel Bracket	Power Cord	Extension Cable	Screw Sets

FUO-001

Fuse , 32V-15A
