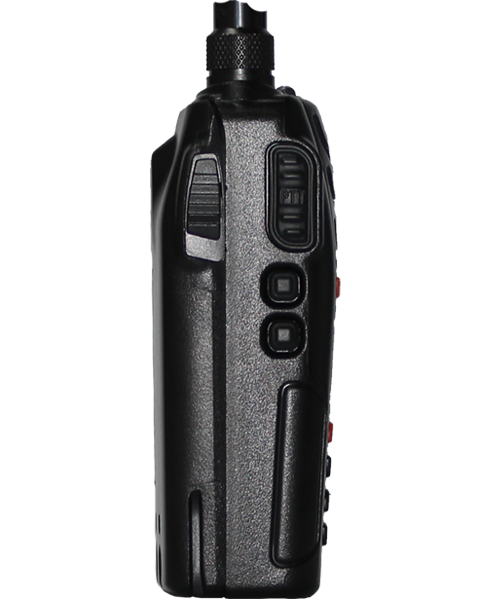

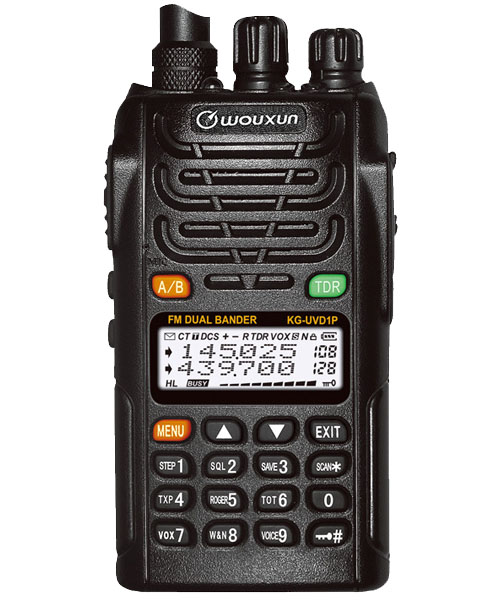

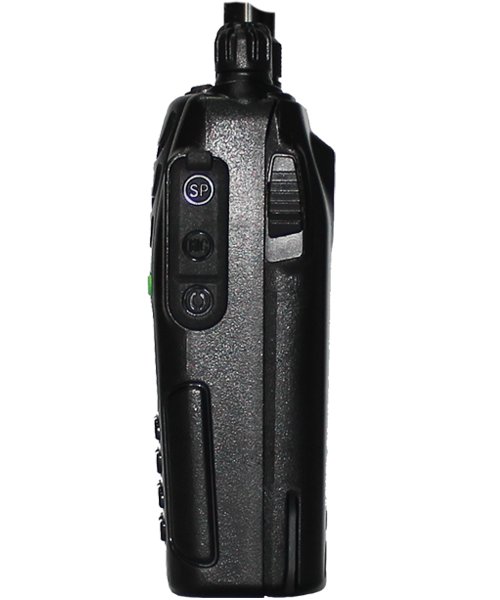

Dual Bands , Dual Display , Classic Two Way Radio KG-UVD1P



	Dual Bands , Dual Display , Classic Two Way Radio KG-UVD1P

CLICK HERE CLOSE LIST


MAIN FUNCTIONS

1750 Hz Burst Tone
DTMF Encoding And Decoding Function
Working Mode , VHF TX-UHF RX or UHF TX-VHF RX Can be Set Freely
CTCSS / DCS Scan
VOX and SOS Function
Bright Flashlight Illumination
Digital FM Radio

Bandwidth Selection
Priority Scan , Add Scanning Channel
High / Low Power Selection
50 Groups CTCSS , 105 Groups CCTCSS
Waterproof IP55
Superheterodyne Receiver Type


TECHNICAL SPECIFICATION

Transmitter
Frequency Stability	±2.5PPM
RF Carrier Power	VHF:5W UHF:4W
Effective Radiation Power	within pre-determined value ±7.5dB
Audio Modulation	+3dB(0.3-3KHz)
Max Frequency Deviation	12.5KHz ±2.5KHz , 25KHz ±5KHz
Adjacent Channel Power	12.5KHz ≥60dB , 25KHz ≥70dB
Frequency Steup	5 , 6.25 , 10 , 12.5 , 25 , 50 , 100KHz
Spurious Radiation	≤-30dB
Inter Modulation Attenuation	≥40dB
Modulation Distortion	≤10%
Residual FM	≤-35dB
Residual AM	≤3%
Emission Designator	F3E

Receiver
Adjacent Channel Selectivity	12.5KHz ≥60dB , 25KHz ≥70dB
Squelch Rejection Sensitivity	≤0.8µV
Squelch Sensitivity	≤0.2µV
Inter Modulation	≥65dB
Co-channel Rejection	≥-8.0dB
Performance of Amplitude Limiter	≤3
Resistance	≥84 dB
Spurious Radiation	9KHz-1GHz≤-57dBm ,1GHz-4GHz≤-47dBm
Audio Response	+1~-3dB(0.3~3KHz)
Audio Distortion	≤5%
Sensitivity	0.16µV SINAD 12dB
Audio Power	≤500mW

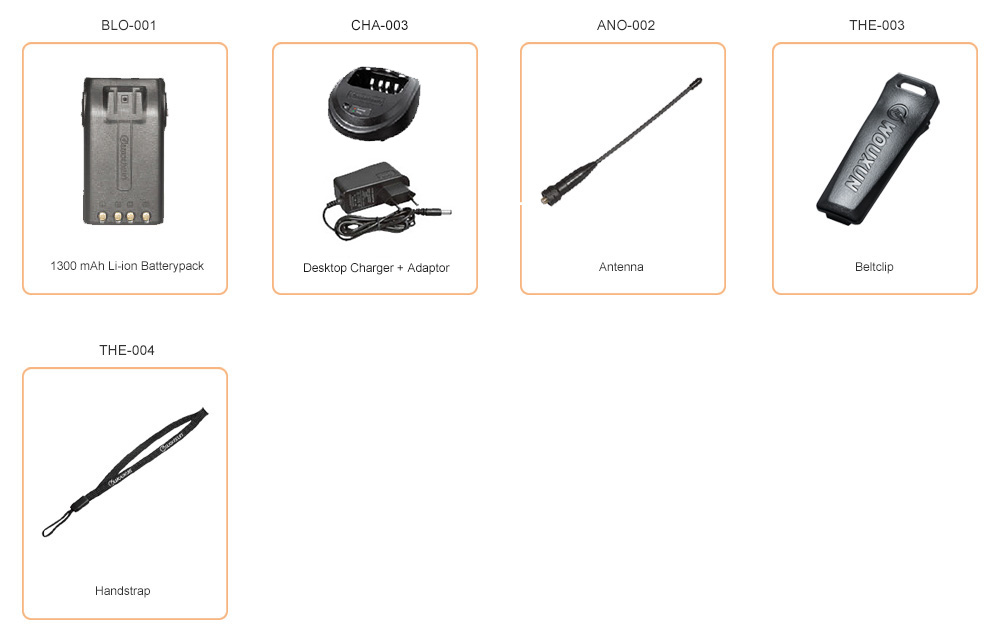

STANDARD ACCESSORY

OPTIONAL ACCESSORY

BLO-007	CHA-007	LCO-003	PCO-009

Li-ion Battery Pack , 2600mAh	Six-way Charger	Leather Case	USB Cable

HEO-001	HEO-002	HEO-003	HEO-005

Headset	Air Conduit Earphone	Headset	Air Conduit Earphone

SMO-001	SMO-002	CCO-001	ELO-001

Speaker	Speaker	Car Charger	Eliminator

ANO-041	ANO-006	AAO-001	AAO-002

Antenna , 38CM	Antenna	SL16 Antenna Adaptor	BNC Antenna Adaptor

BAO-001

"AA" Battery Case
