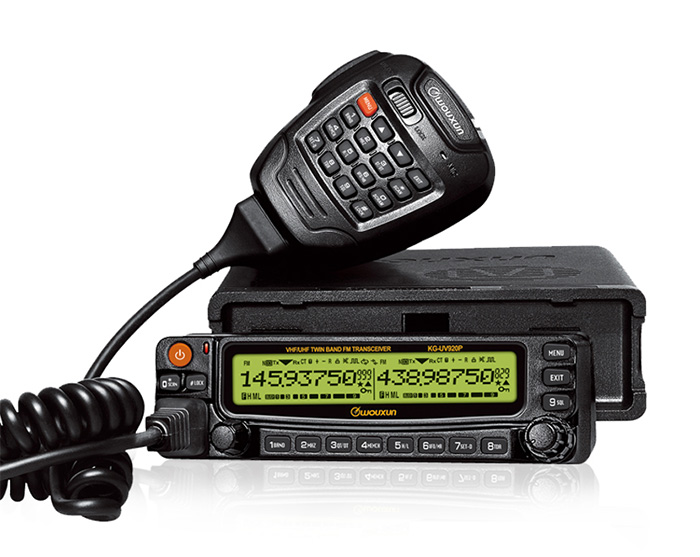

radio menu Dual System , Dual Frequency , Car Mobile Radio KG-UV920P



  CLICK HERE CLOSE LIST radio list
kg-uv920p
main function Unidirectional or Two Way Cross Band Repeater main function Dual Frequency Display, Dual Independant Operation System
Use the repeater function of KG-UV920P, it can realize the signal repeater from V band
to U band, or U band to V band.
Completely Seperated Two Operation Systems, Dual Track, Dual Speaker, even one
area can not work well, the other area can receive/transmit well. In the emergency communication, improve the stability of communication.
main function Remote Control Function main function Voice scrambler, DTMF Encode&Decode
Use remote control function to lock, power on/off, monitor, and change the current frequency, CTCSS/DCS of the remote radio. Voice scrambler can reinforce the safety of communication, 8 groups scramblers, DTMF encode&decode,and also can build data transfer.
order radios
MORE FUNCTIONS
  main function 999memory channels
main function Front panel and radio body flexible for separation
main function CTCSS/DCS encoding and decoding
main function Non-standard CTCSS/DCS setting freely
main function Same -band repeat on two combined radios
main function Dual track and multi-way loudspeakers
main function Hand microphone DTMF with loudspeakers, receiving indicator and volume adjuster
main function Caller ID display
main function Multiple back light color select able
main function Scan channel adding /deleting
main function Grouping channel scanning
main function Superheterodyne Receiver Type
main functionGroup calls, all calls and selective calls
main function Priority channel scanning
main function APO power management
main function Wide / narrow bandwidth select able
main function Voice guide
main function Automatic temperature detection
main function Stun/kill function
main function Single audio pulse frequency
main function Multiple scanning ways
main function Remote control setting
main function Multiple setting for cooling fan

TECHNICAL SPECIFICATION
Intergration
   Frequency Range

    suitable for different countries or areas
    RX and TX
   136-174MHz & 400-470MHz
   136-174MHz & 400-480MHz
   136-174MHz & 216-280MHz
   136-174MHz & 420-520MHz
   144-146MHz & 430-440MHz
   144-146MHz & 222-225MHz
   144-148MHz & 420-520MHz
    RX , FM , 65MHz-108MHz

   Step 5KHz/6.25KHz/10KHz/12.5KHz
25KHz/50KHz/100KHz
   Channel Number 999
   Work Mode F2D/F3E
   Operating Temperature -20℃~+60℃
   Voltage 13.8VDC±15%
   Antenna Impedance 50Ω
   Weight 1438 g
   Size 140 x 44 x 207 MM
Receiver
  Wide Narrow
   Adjacent Channel Selectivity ≤70dB ≤60dB
   Inter Modulation ≤65dB ≤60dB
   Spurious Response ≤70dB ≤70dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Signal to Noise Ratio ≥45dB ≥40dB
   Audio Distortion ≤5%
   Audio Power transceiver≤3w , hand microphone≤1w
   Sensitivity UHF/VHF:0.25µV(12dB SINAD)

Transmitter
  Wide Narrow
   Adjacent Channel Power ≥70dB ≥60dB
   Type of Modulation 16K F3E 11K F3E
   Spurious ≥60dB ≥60dB
   Signal to Noise Ratio ≥40dB ≥36dB
   Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)
   Output Power VHF(5W/10W/25W/50W)    UHF(5W/10W/25W/40W)

All Specifications Are According to Related Standard Tests , Since The Growing Development of Technology , If There is Any Change to The Above Specfication Are Without Notice.

STANDARD  ACCESSORY
Send Accessory Inquiry
Please Click The Icon to Select The Items You Want, And Send The Inquiry to WOUXUN For Offers

MMO-001   SAO-001   SAO-002   MBO-001
microphone ...

panel ...

panel ...

bracket ...
Hand Microphone   Inclined Switchboard Panel   Flat Switchboard Panel   Mobile Mounting Bracket

RBO-001   PWO-002   SCO-002   SSO-001
bracket ...

cord ...

cable ...

screw ...
Remote Front Panel Bracket   Power Cord   Extension Cable   Screw Sets

FUO-001
fuse ...

Fuse , 32V-15A

OPTIONAL  ACCESSORY
SPO-002   PCO-003   ANO-015   ANO-016
power ...

cable ...

antenna ...

mount ...
Switching Power , 30A   USB Programming Cable   Antenna   Strong Magnetic Mount
