radio detail

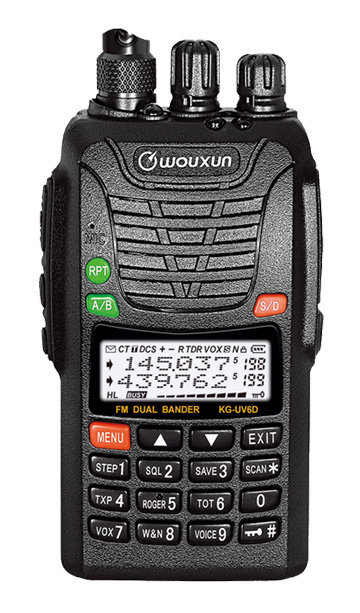

radio menu Dual Band Two Way Radio KG-UV6D



  CLICK HERE CLOSE LIST radio list


kg-uv6d

main function Low voltage voice prompt
main function English voice guide
main function Channel name edit and display





MAIN FUNCTIONS
main function DTMF encoding and decoding
main function 1750 Hz Burst Tone
main function Working Mode :U-V,V-U,V-V,U-U can be set freely
main function CTCSS/DCS Scan
main function VOX transmission
main function SOS Function
main function Bright Flashlight Illumination
main function Digital FM Radio
main function Bandwidth Selection
main function Priority Scan ,Add Scanning Channel
main function High/Low Power Selection
main function 50 Groups CTCSS/105 Groups CCTCSS
main function IP 55 Waterproof
main function Busy channel lockout
main function Transmit overtime voice prompt
main function Begin/end transmitting beep prompt
main function Auto / manual keypad lock
main function Display select able on channel mode
main functionSuperheterodyne Receiver Type
order radios


TECHNICAL SPECIFICATION
Intergration
Frequency Range Can Be Suitable For Different Countries or Areas
136-174&216-280MHz (RX/TX)
136-174&350-470MHz (RX/TX)
136-174&400-480MHz (RX/TX)
136-174&420-520MHz (RX/TX)
144-146&430-440MHz (RX/TX)
144-148&222-225MHz (RX/TX)
66-88&136-174MHz (RX/TX)
66-88&400-480MHz (RX/TX)
FM: 76-108MHz (RX)
Memory Channels 199 channels
Frequency Stability ±2.5ppm
Operating Voltage 7.4V
Operating Temperature  -30℃~+60℃
Waterproof IP 55
Antenna Impedance 50Ω
Dimension 65x119x39.5(mm)
Weight 253g
Transmitter
Frequency Stability ±2.5PPM
RF Carrier Power UHF: 4W VHF: 5W
Effective Radiation Power (ERP) within pre-determined value ±7.5dB
Max. Frequency Deviation Channel Space: 25KHz  ±5KHz
Channel Space: 12.5KHz ±2.5KHz
Audio Modulation +3dB (pre-emphasis by 6dB between 0.3-3KHz)
Adjacent Channel Power Channel Space: 25KHz  ≥70 dB
Channel Space: 12.5KHz  ≥60 dB
Spurious Radiation ≤-30dBm
Inter modulation Attenuation ≥40dB
Modulation Distortion ≤10%
Residual FM ≤-35dB
Residual AM ≤3%
All specifications are according to related standard tests. Since the growing development of technology, if there is any change to the above specfication are without notice.


Receiver
Sensitivity (12dB SINAD) 0.16µV
Squelch Rejection Sensitivity ≤0.8µV
Squelch Sensitivity ≤0.2µV
Audio Output power 500mW
Audio Distortion ≤5%
Audio Response (300-3000Hz)  +1 to -3dB
Co-channel Rejection ≥-8.0dB
Performance of Amplitude Limiter ≤3
Adjacent Channel Selection Channel Space: 25KHz  ≥70 dB
Channel Space: 12.5KHz  ≥60 dB
Inter-modulation ≥65 dB
Resistance ≥84 dB
Spurious Radiation 9KHz-1GHz≤-57dBm
1GHz-4GHz≤-47dBm

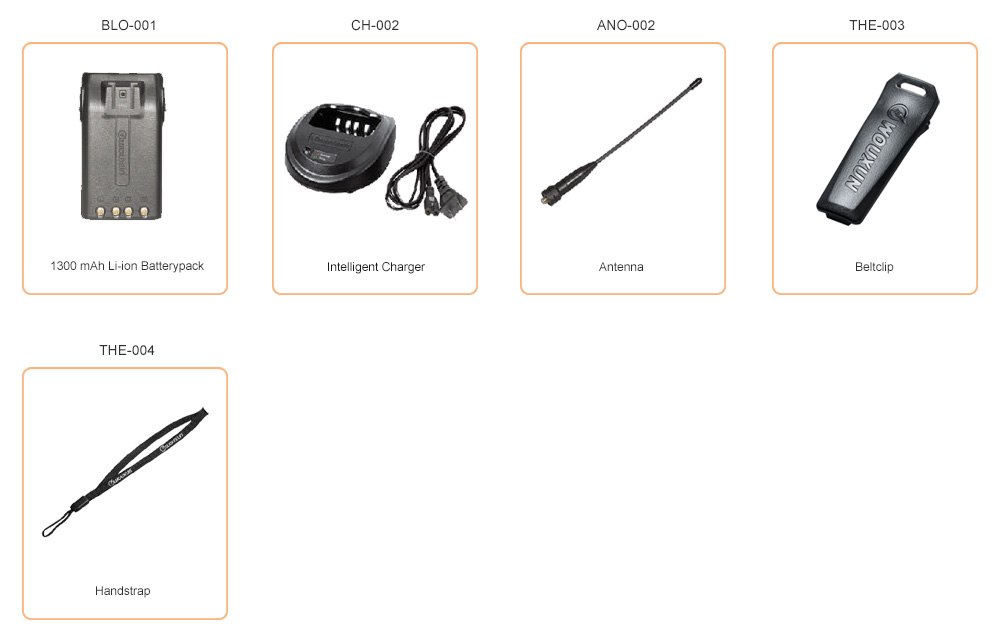

STANDARD ACCESSORY
uv6d accessory

OPTIONAL  ACCESSORY
BLO-007   CHA-007   LCO-003   PCO-009
battery

charger

case

cable
Li-ion Battery Pack , 2600mAh   Six-way Charger   Leather Case   USB Cable

HEO-001   HEO-002   HEO-003   HEO-005
headset

earphone

headset

earphone
Headset   Air Conduit Earphone   Headset   Air Conduit Earphone

SMO-001   SMO-002   CCO-001   ELO-001
speaker

speaker

charger

eliminator
Speaker   Speaker   Car Charger   Eliminator

ANO-041   ANO-006   AAO-001   AAO-002
antenna

antenna

adaptor

adaptor
Antenna , 38CM   Antenna   SL16 Antenna Adaptor   BNC Antenna Adaptor

BAO-001
battery case

"AA" Battery Case
