radio menu UV Dual Band , Cross Band Repeater , Two Way Radio KG-UV2Q



  CLICK HERE CLOSE LIST radio list

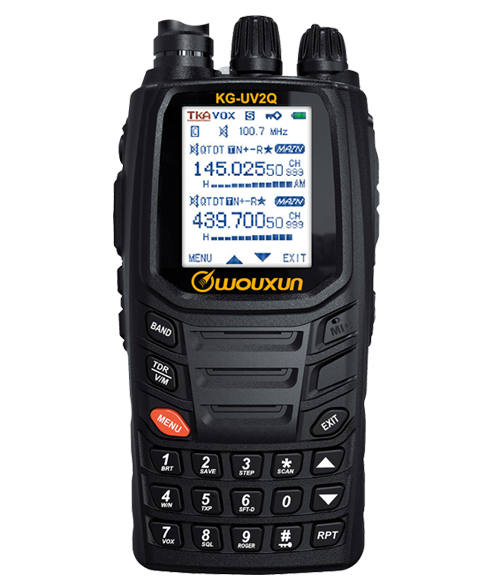

wouxun kg-uv2q

MAIN FUNCTIONS
  • Large Color Screen
  • Cross Band Repeater
  • DTMF Encoding and Decoding
  • All Calls , Group Calls , Selective Calls
  • Remote Alarm
  • Wide / Narrow Bandwidth Selection (25KHZ/12.5KHz)
  • Chinese or English Voice Guide
  • Chinese or English Screen Display
  • English Channel Name Edit
  • Bright Flashlight illumination
  • Single-Tone Pulse Frequency : 1000 / 1450 / 1750 / 2100 Hz
  • Non-Standard CTCSS
  • VOX and SOS function
  • Completely Turn Off Display Screen Background Light
  • Completely Trun Off Flickering Indicator Light
  • Duplex Work on A&B Areas ( TX on One Area While RX on The Other
    Area Simultaneously )
  • RX on The Same / Different Bands of A&B Areas Simultaneously
  • Simultaneously Scanning on Twin Band , Scanning on Limiting Frequency
  • Channel Groups Scanning
  • QT/DQT Encoding / Decoding , QT/DQT Scan
  • VOX and SOS function
  • Multi Definition for Sidekeys
  • Reverse Frequency
  • Mplitude Frequency PTT Settings
  • Stopwatch

TECHNICAL  SPECIFICATION
Intergration
   Frequency Range

   Suitable For Different Countries or Areas
    1 TX: 136-174MHZ , 400-512MHZ
    2 RX: 76-108MHZ , 108-136MHZ (Air Ground)
             136-180MHZ , 230-250MHZ
             350-400MHZ ,  400-512MHZ
             700-985MHZ

   Step 2.5 / 5 / 6.25 / 10 / 12.5 / 25 / 50 / 100 KHz
   Channel Number 999
   Work Mode F2D / F3E
   Operating Temperature -20 ℃~+40 ℃
   Voltage 7.4 VDC
   Antenna Impedance 50 Ω

Transmitter
  Wide Narrow
   Adjacent Channel Selectivity ≥70dB ≥60dB
   Type of Modulation 16K F3E 11K F3E
   Spurious ≥60dB ≥60dB
   Audio Response +1~-3dB (0.3~3KHz) +1~-3dB (0.3~3KHz)
   Max Frequency Deviation ±5KHz ±2.5KHz
   Frequency Stability ±2.5 PPM
   Audio Distortion ≤ 5%
   Output Power UHF: 8W / 5W / 1W , VHF: 10W / 7W / 1W
Receiver
  Wide Narrow
   Adjacent Channel Selectivity ≤70dB ≤60dB
   Inter Modulation ≤65dB ≤60dB
   Spurious Response ≤70dB ≤70dB
   Audio Response +1~-3dB (0.3~3KHz) +1~-3dB (0.3~3KHz)
   Signal to Noise Ratio ≥45dB ≥40dB
   Audio Distortion ≤ 5%
   Audio Power ≤ 500mW
   Sensitivity 08-136MHz(AM) -106.0dbm SN 13dB
136-180MHz -119.0dbm SINAD 13dB
230-250MHz -116.0dbm SINAD 13dB
350-400MHz -119.0dbm SINAD 13dB
400-512MHz -119.0dbm SINAD 13dB
700-986MHz -96.0dbm SINAD 12dB



STANDARD  ACCESSORY
BLO-012   CHA-011   CHA-011   OTH-001
battery

charger

power adapotr

belt clip
Li-ion Battery Pack , 3200mAh   Charger   Power Supply Adaptor   Belt Clip

OTH-005   ANO-014
hand strap

antenna

Hand Strap   Antenna
