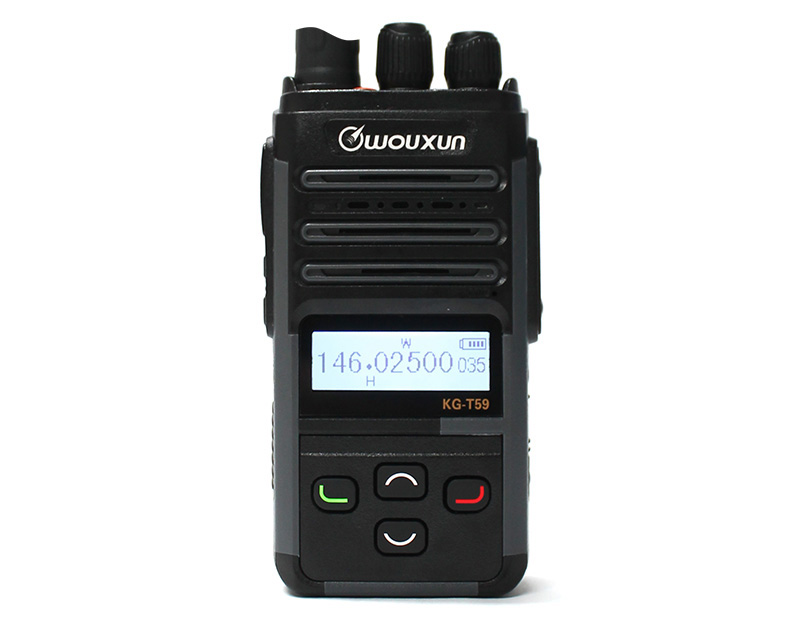

Portable Two Way Radio KG-T59



CLICK HERE CLOSE LIST

Send Radio Order Message

MAIN  FUNCTIONS

DTMF Encoding and Decoding Begin and End Transmitting Beep Prompt 105 Groups DCS , 50 Groups CTCSS CTCSS Scan and DCS Scan Voice Guide Channel Name Edit and Display Battery Capacity Prompt Programmable by Computer Bandwidth Selectable

Reverse Frequency Function Multi Scan Mode (TO / CO / SE) Displaying Mode : Frequency / Channel / Channel Name TOT (Time-out Timer) Busy Channel Lockout Keypad Lock (Auto / Manual) Wire-clone Function Waterproof IP66 USB Type-C Built Into The Radio For Charging

TECHNICAL  SPECIFICATION

Intergration    Frequency Range    Can be Suitable For Different Countries or Areas    VHF : 66-88 / 136-174 MHz    UHF : 400-470 MHz    Memory Channels 256    Frequency Stability ±2.5 PPM    Operating Voltage 7.4 VDC    Operating Temperature  -30℃～+60℃    Waterproof IP 66    Antenna Impedance 50Ω    Operating Way Simplex of Co-channel or Dis-channel	Transmitter    Frequency Stability ±2.5 PPM    RF Carrier Power UHF: 4W , VHF: 5W    Effective Radiation Power Power Changes Not Exceed Preset Value ±7.5dB    Max. Frequency Deviation Channel Space: 25KHz  ±5KHz Channel Space: 12.5KHz ±2.5KHz    Audio Modulation +3dB (Pre-emphasis by 6dB Between 0.3-3KHz)    Adjacent Channel Power Channel Space: 25KHz  ≥70 dB Channel Space: 12.5KHz  ≥60 dB    Spurious Radiation ≤-30dBm    Inter Modulation Attenuation ≥40dB    Modulation Distortion ≤10%    Residual FM ≤-35dB    Residual AM ≤3%
Receiver    Sensitivity (12dB SINAD） 0.16µV    Squelch Rejection Sensitivity ≤0.8µV    Squelch Sensitivity ≤0.2µV    Audio Output Power 500mW    Audio Distortion ≤5%    Audio Response (300-3000Hz)  +1 to -3dB    Co-channel Rejection ≥-8.0dB    Performance of Amplitude Limiter ≤3    Adjacent Channel Selection Channel Space: 25KHz  ≥70 dB Channel Space: 12.5KHz  ≥60 dB    Inter-modulation ≥65 dB    Resistance ≥84 dB    Spurious Radiation 9KHz-1GHz≤-57dBm 1GHz-4GHz≤-47dBm

STANDARD  ACCESSORY

BLO-021		ANO-012		OTH-005		OTH-001
Li-ion Battery Pack		Antenna		Hand Strap		Belt Clip
