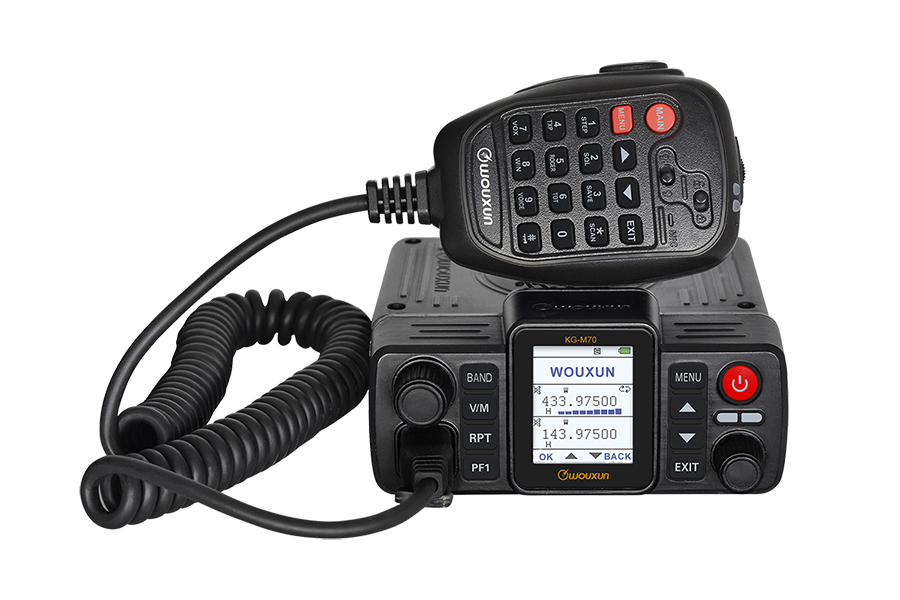

UV Dual Bands , Car Mobile Radio KG-M70



CLICK HERE CLOSE LIST

Send Repeater Order Message

MAIN  FUNCTIONS

DTMF Encoding And Decoding Priority Scan Function Duplex Work at A / B Areas , One Area TX , Another Area RX All Calls , Group Calls And Selective Calls QT / DQT Scan Single Tone Pulse Frequency , 1000 / 1450 / 1750 / 2100 KHz VOX and SOS Function

Incoming Message Display Caller ID 350MHz Frequency Can be Customized Wide / Narrow Bandwidth Selection (12.5 / 25 KHz) Chinese Operation Menu Reverse Frequency Stopwatch , Compander , Remote Alarm

TECHNICAL  SPECIFICATION

General    Operating Temperature -20 ℃～+40 ℃    Voltage 13.8 VDC    Setp 5 / 6.25 / 12.5 / 25 / 50 / 100 KHz    Frequency Range    Suitable For Different Countries or Areas    136-174 & 400-480MHz (RX/TX)    76-108MHz (FM , RX , Setp 100K)    Memory Channels 999    Mode F2D / F3E    Antenna Impedance 50Ω Analogue Transmitter   Wide Narrow    Modulation 16K F3E 11K F3E    Effective Radiation Power ≥70dB ≥60dB    Spurious Response ≥60dB ≥60dB    Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)    Max Offset ±5KHZ ±2.5KHZ    Frequency Stability ±2.5PPM    Audio Distortion ≤5%    Output Power 25W	Analogue Receiver   Wide Narrow    Adjacent Channel Selectivity ≤ 70dB ≤ 60dB    Inter-Modulation ≤ 65dB ≤ 65dB    Spurious Response ≤ 70dB ≤ 70dB    Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~3KHz)    Squelch Sensitivity ≥45dB ≥40dB    Audio Distortion ≤5%    Audio Power ≤500mW    Sensitivity UHF/VHF：0.25μV（12dB SINAD）
